Husqvarna Automower 240mm Performance Style sliding plate silver

Husqvarna Automower 240mm Performance Style sliding plate silver

More power. More precision. Your perfect lawn.

Protection from dirt & wear
Easy installation & perfect fit
Coole Optik

Special price €22,00

incl. VAT.

Free shipping from minimum order value

RECOMMENDED EXTENSIONS

Husqvarna Automower 240mm robotic lawnmower Performance blade disc+slide disc EVOlution Set MK4 silver

€99,00

MowerKit PREMIUM 60x knife blades + 60x screws + accessories + tool box complete set knife blade system

€55,00 €65,00

Refill pack PREMIUM 30x knife blades + 30x screws Knife blade system

€23,00

Missing €90 until free shipping (does not apply to small parts).

Quantity

Fast delivery
Simple return
Free shipping DE from 90€
Climate-neutral shipping
Pay securely
Free shipping EU from 99€

Our performance protection and style elements combine function and design at the highest level. They reliably protect sensitive components of your robotic lawnmower from dirt, moisture and mechanical wear and tear - and look really cool at the same time!

Thanks to their perfect fit and simple installation, they are ready for use in no time at all - without any complicated adjustments. While conventional covers often only provide visual accents, our solutions offer real added value: they extend the service life of your robot, optimize resistance and ensure permanently clean operation.

At the same time, they give your device a cool, individual look that stands out from standard solutions.

More protection, more style, more performance - with our products, your robotic lawnmower not only looks better, but also stays in top shape for longer!

You will find further important information in the individual drop-down menus directly below. This information is part of the product description.

Compatibility

Primarily in combination with our performance knife plates.

Suitable for (almost) all Husqvarna Automower from model year 2016.

As a replacement for the original disk with item number 599674701:

320 NERA
430X NERA
450X NERA

As a replacement for the original plate with the item number 531177401:

405X
410XE NERA
435X AWD
415X
535 AWD
As a replacement for the original plate with the item number 598814401:
420
430X
430X NERA
440
450X (5972820)
450X NERA
520
550
520 EPOS
550 EPOS

For compatibility, the specifications such as year of manufacture, model number and article number of the original plate must match.

Technical data

Silver version

Scope of delivery

1x ready-to-use sliding plate

All other items shown are for illustrative purposes only and are not included in the scope of delivery.

Assembly

Installation recommendation - sliding plate system

Our installation recommendations serve as a non-binding guide. If different, the manufacturer's specifications take precedence.

Required tools, aids and protective equipment:

T20 Torx as wrench or bit for screwdriver: for original cover screws
5mm hexagon socket as a wrench or bit for the central screw
4 mm hexagon socket as a wrench or bit for screwdrivers (for original screws)
2.5 mm hexagon socket as a wrench or bit for screwdrivers and the screws for the blade plate
Cut-resistant gloves

Dismantling procedure:

Remove the cover/cover fastening screws
Remove cover
Loosen the central screw
Remove bearing housing
Loosen the blade disk screws
Remove the knife plate

Assembly process:

Alignment of the blade disc: Ensure that the three drivers are correctly aligned on the shaft flange --> The drivers must be inserted into the holes - not into the threads
Positioning the blade plate: Position the blade plate and attach the screws
Fastening the blade plate: Apply the screws and tighten them evenly with a moderate torque (approx. 1 Nm).
Fastening the bearing: Insert the bearing housing and tighten it using the central screw with a moderate torque
Montage Messerklingen: Messerklingenmontage gemäß Empfehlung vornehmen:
-->> Messerklingenmontage <<--

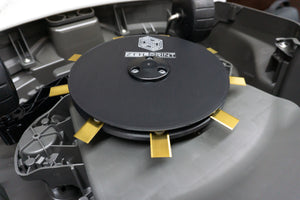

Position the sliding plate: When positioning the sliding plate, ensure that the drivers are correctly aligned
Finish: Tighten the cover evenly with a moderate torque

Notes, warranty & liability

Compatibility, technical data, scope of delivery and installation according to the information in the individual drop-down menus above. This information and further details form part of the product description and are provided for your information.

Our parts may differ slightly from the product images in terms of color, color gradient, gloss level, surface texture and shading due to the manufacturing process . These visual differences do not affect function, strength or dimensional accuracy.

Any individual intervention is at your own risk. All manufacturer's instructions remain valid, in particular safety instructions, lawn preparation, test run, cutting height, blade replacement and the limited warranty.

Installation is carried out in accordance with the robotic lawnmower manufacturer's instructions. Our installation recommendations serve as a non-binding guide. If different, the manufacturer's specifications take precedence.

Before commissioning , the freedom of movement of the installed parts must be checked and ensured .

For optimum use and to protect the robotic lawnmower and our performance parts, the area to be mowed must be free of obstacles to avoid interference or collisions. Hazardous areas must be excluded before each run - in accordance with the manufacturer's specifications.

The warranty and liability relates to verifiable material defects and processing errors, but not to damage caused by improper use or collisions with foreign objects.
In addition, we only accept warranty and liability for the blade discs if our own blade systems (CLASSIC and PREMIUM) are used as a complete system.
The use of other systems has neither been tested nor approved by us.

In individual cases , an individual solution can be worked out after contacting us.
