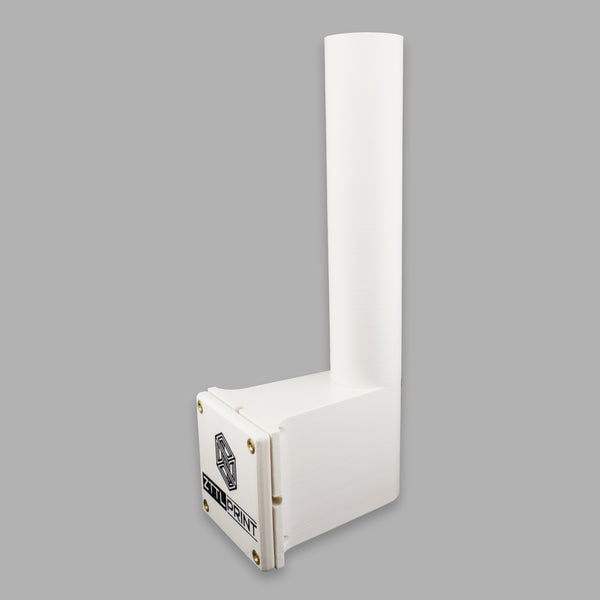

Mammotion Luba 1 + 2 & Yuka robotic lawnmower Performance Smart antenna holder white
More power. More precision. Your perfect lawn.
incl. VAT.
Free shipping from minimum order value
RECOMMENDED EXTENSIONS
Compatibility
Technische Daten
Scope of delivery
All other items shown are for illustrative purposes only and are not included in the scope of delivery.
Assembly
Installation recommendation - Performance Smart antenna holder
Our installation recommendations serve as a non-binding guide. If different, the manufacturer's specifications take precedence.
Required tools, aids and protective equipment:
Depending on the selected mounting variant and the mounting material used
Installation options & materials required

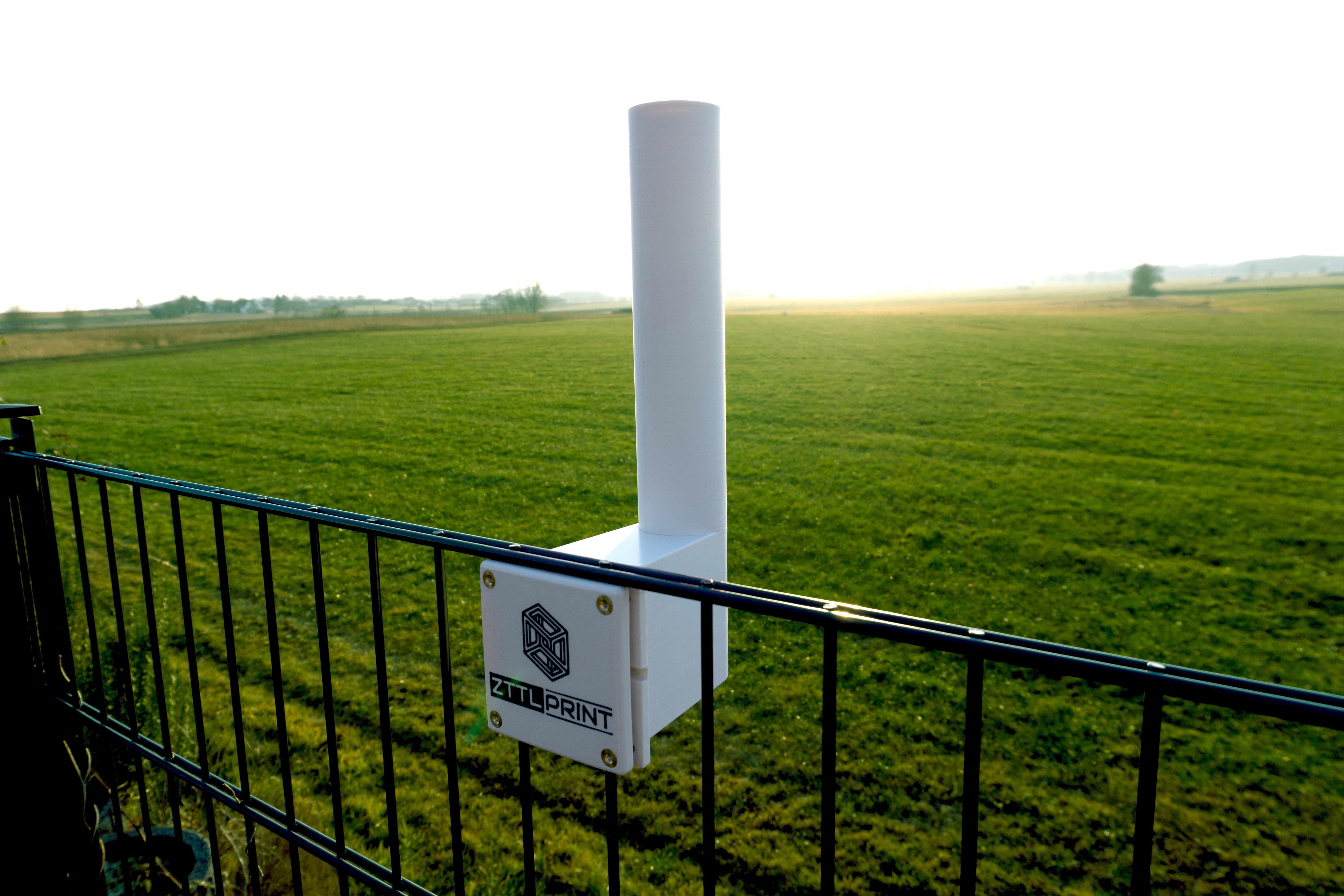

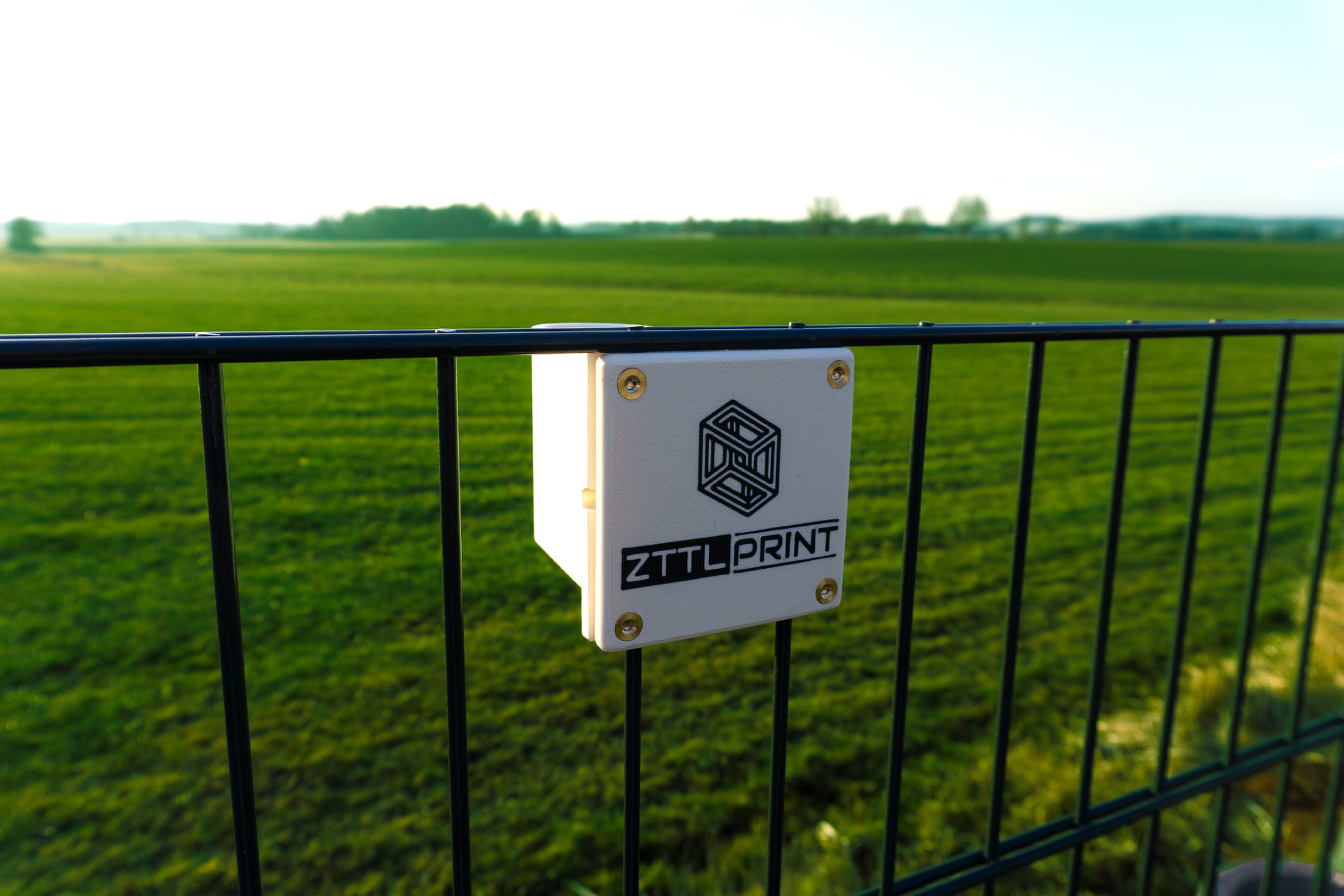

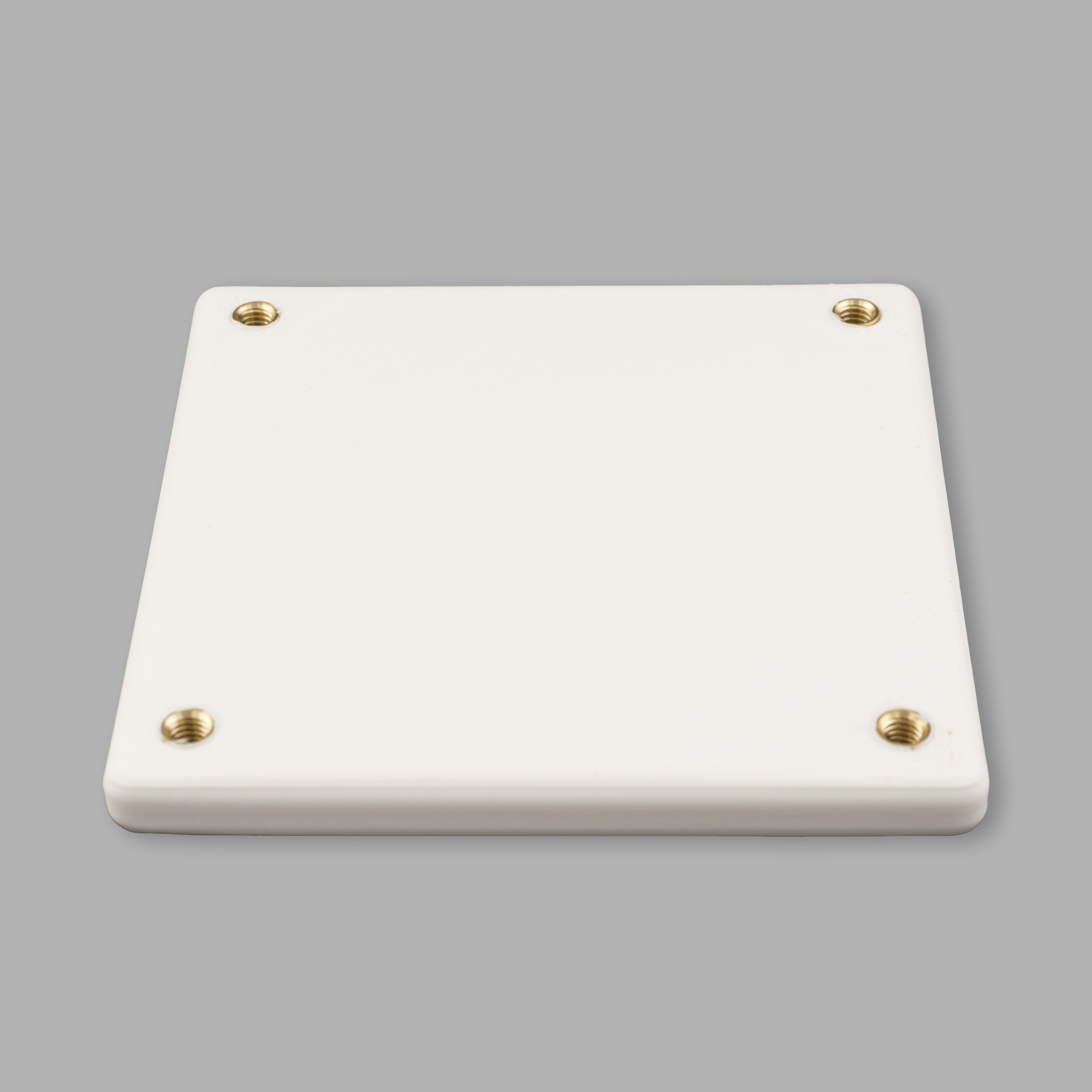

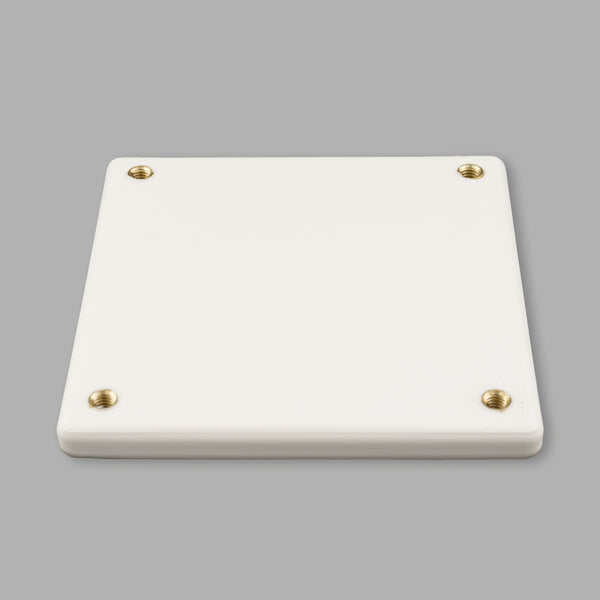

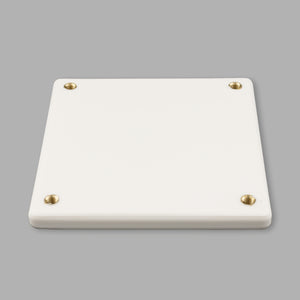

Clamping variant using counter plate:

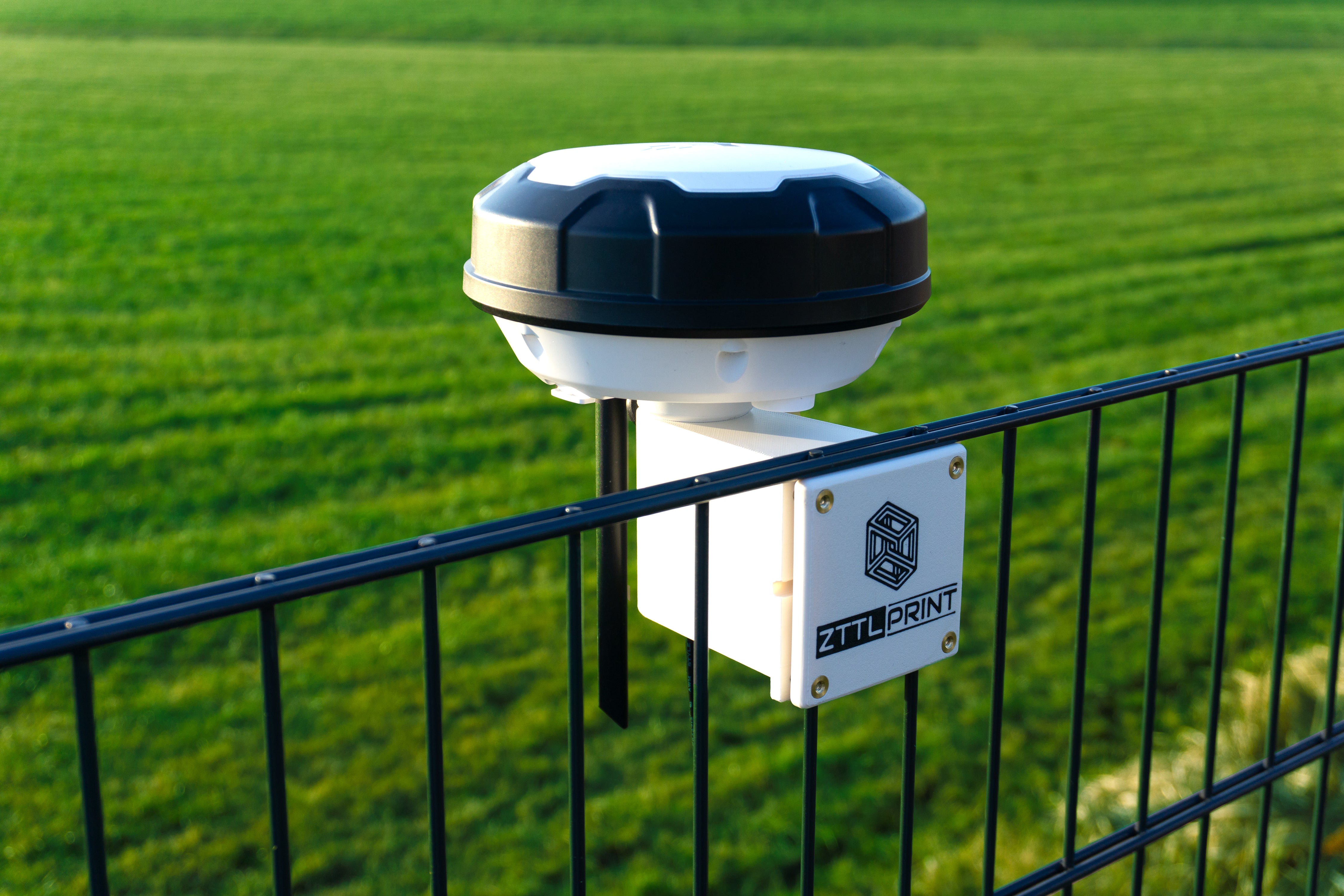

e.g. for mounting on a e.g. for mounting on a 6/5/6 double picket fence
- 4x M4x18 screws
Direct screw connection in hard substrate:
e.g. for installation on brickwork. e.g. for mounting on brickwork
- 4x 4.5x40 mm universal screws (half round head / flat head / pan head)
- 4x 6x30 mm dowels
Direct screwing into a soft substrate:
e.g. for mounting on a wooden façade or garden shed. e.g. for mounting on a wooden facade or garden shed
- 4x 4.5x30 mm wood screws / universal screws
Installation procedure for clamping variant:

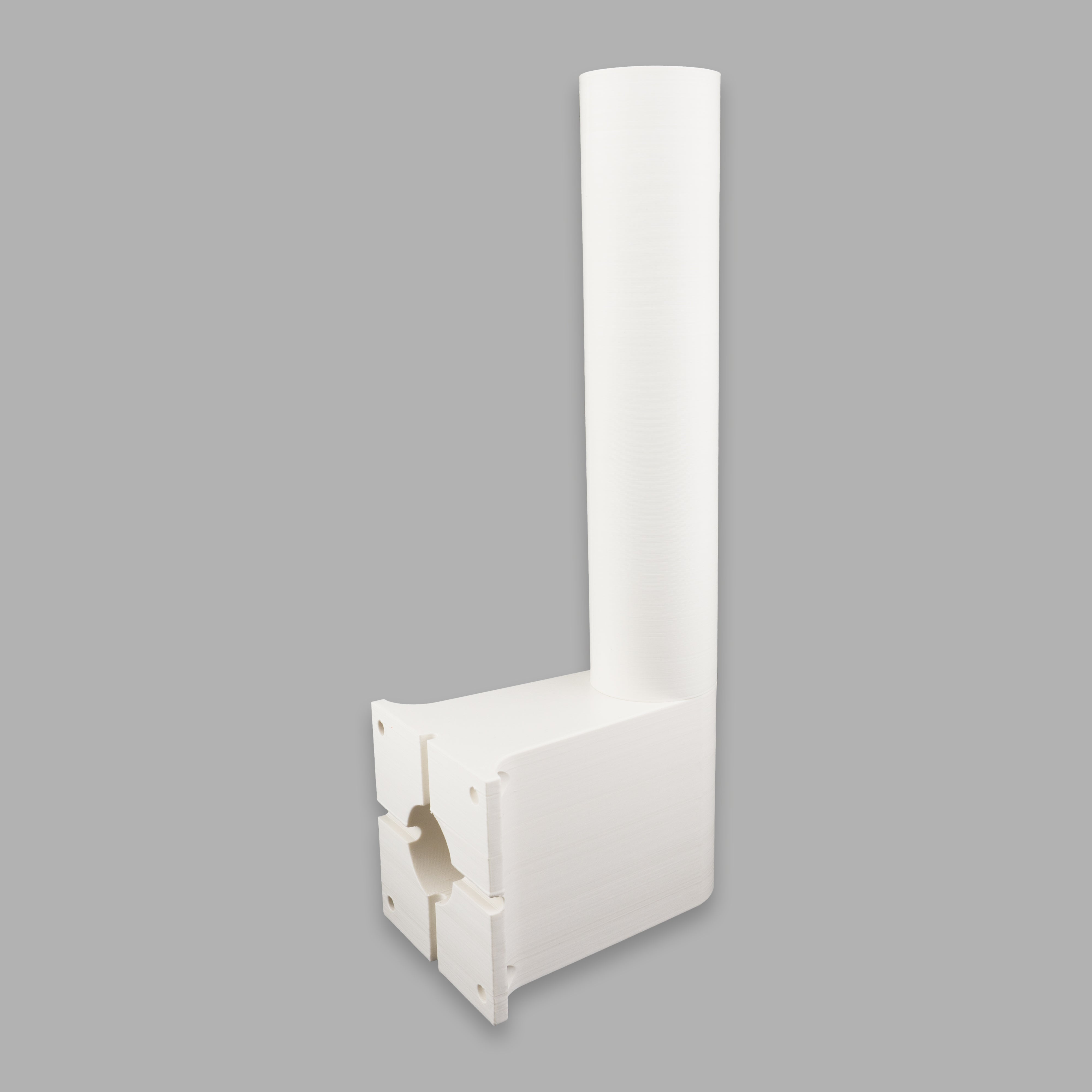

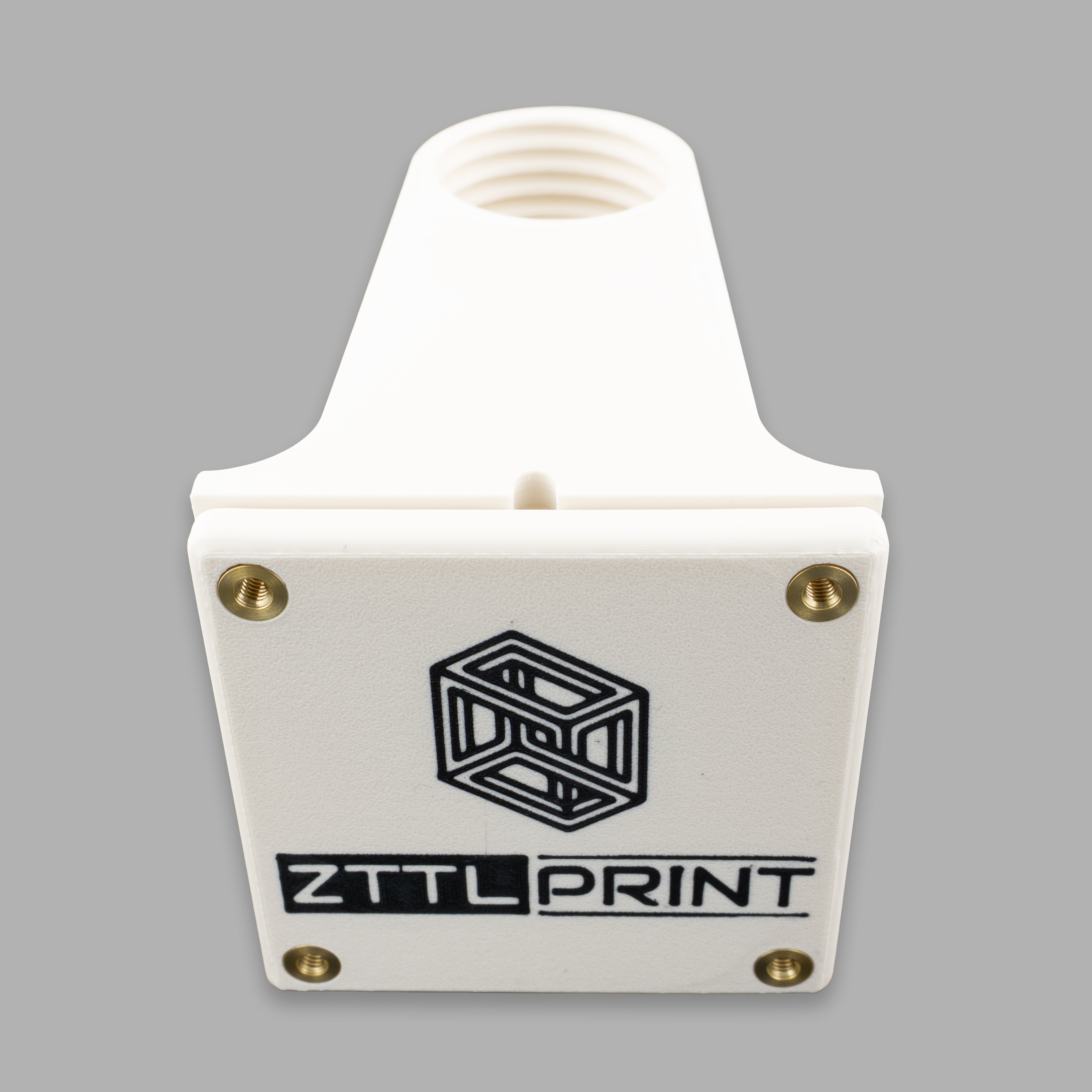

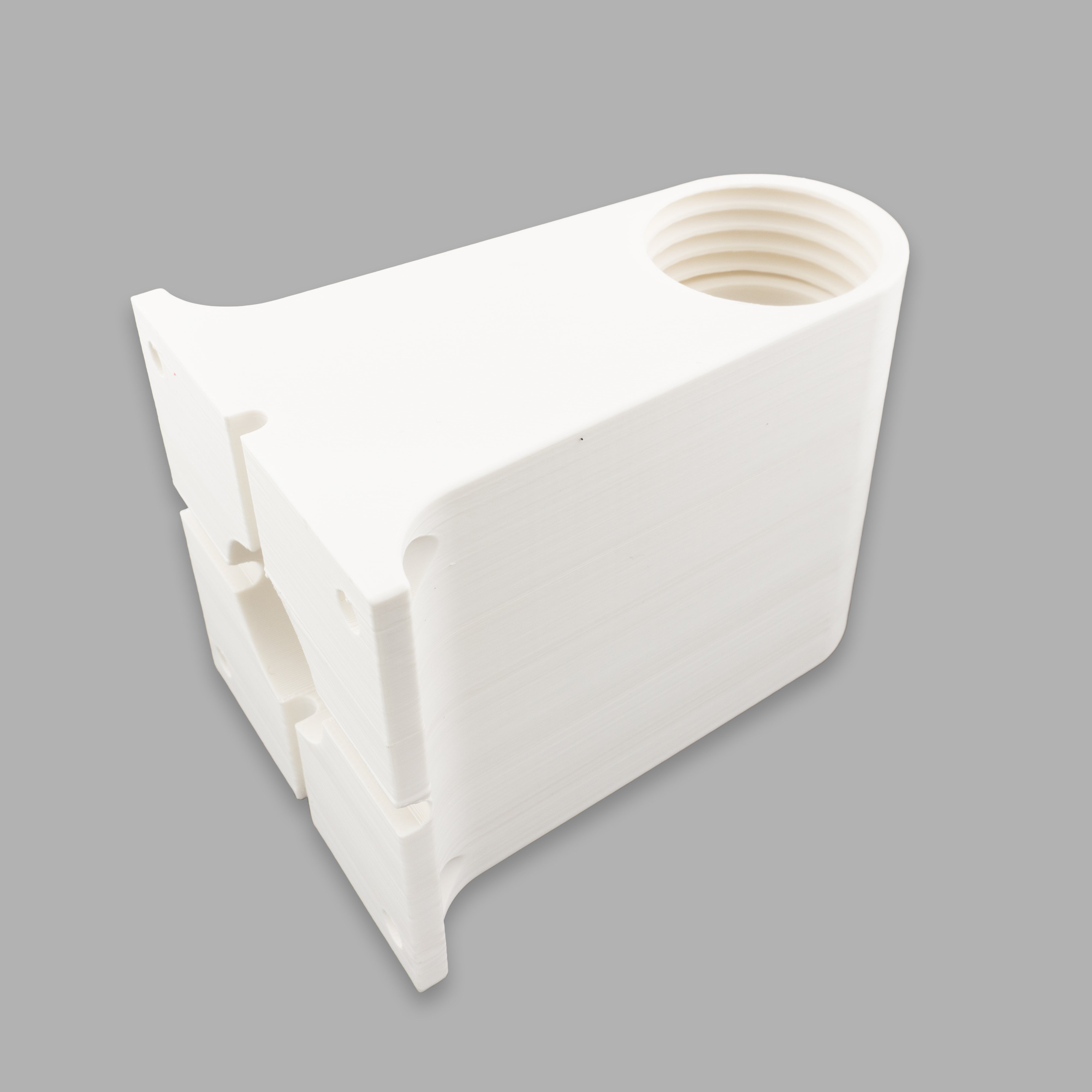

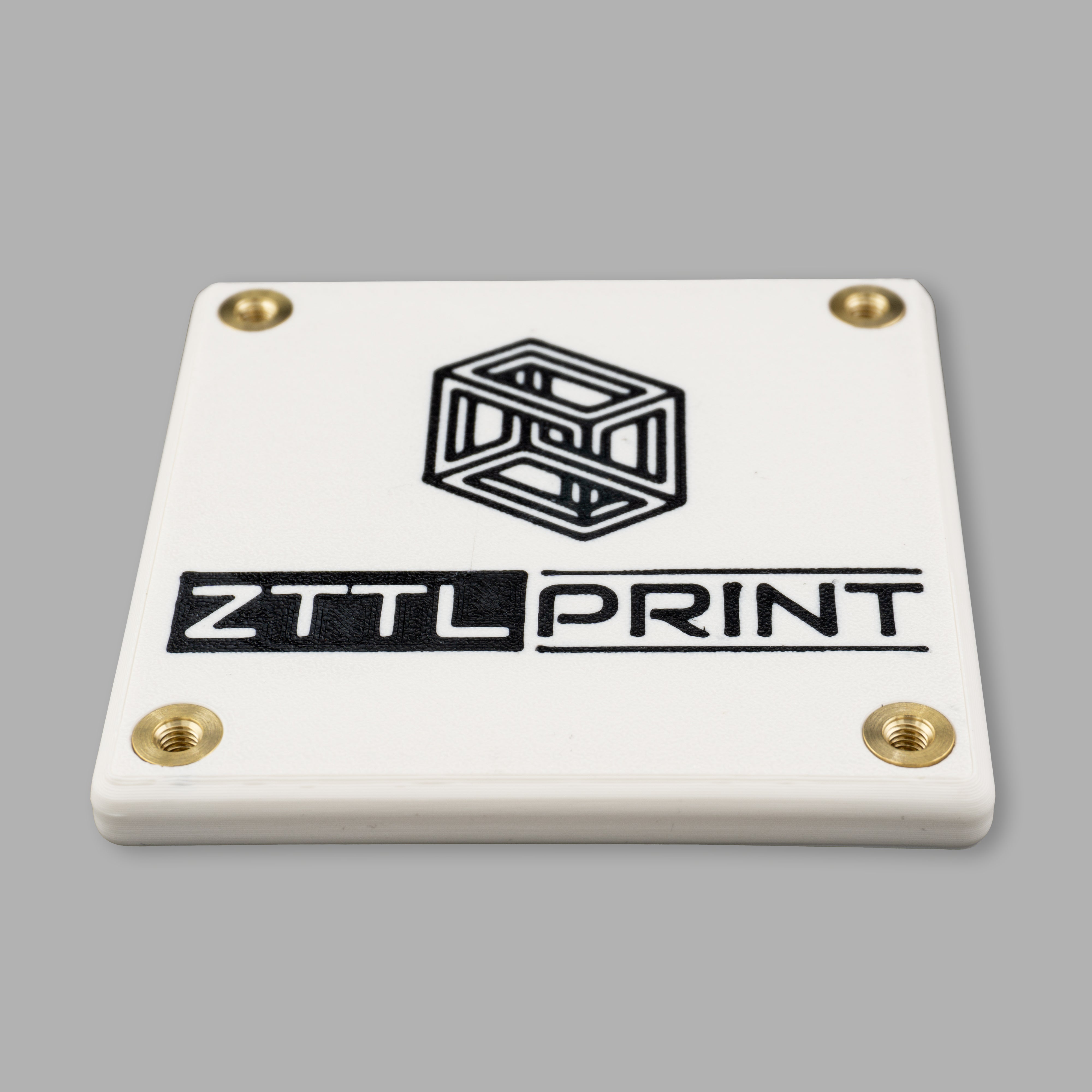

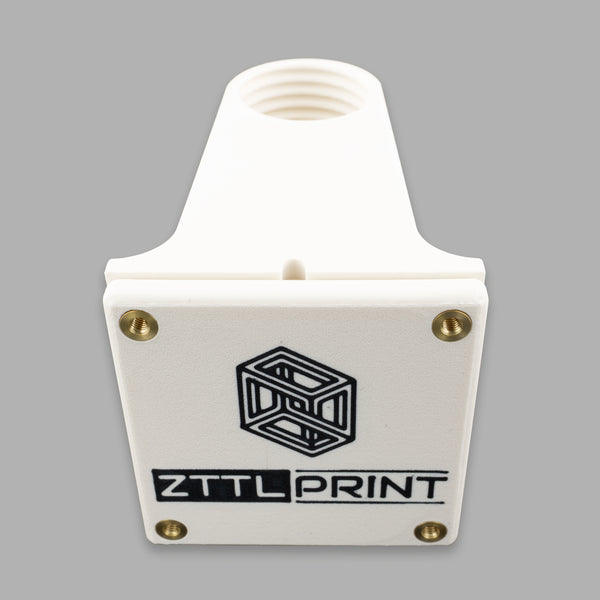

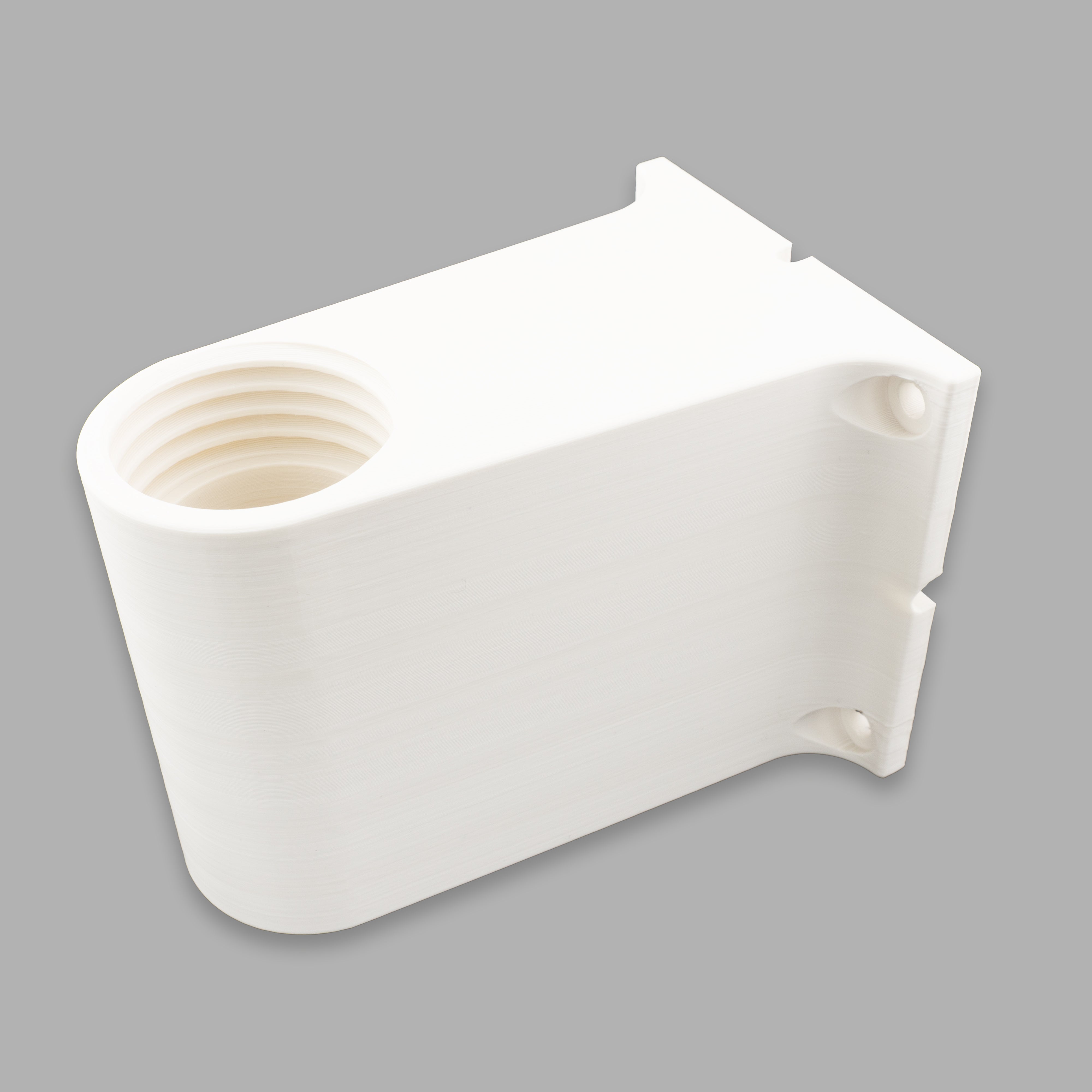

- Positioning: Position the base holder with the counter plate for clamping. Note side with logo (due to direction of threaded sleeve)
- Fastening: Tighten counter plate with screws to base holder with moderate torque (approx. 1 Nm)
- Extension: Attach any number of extensions and screw lightly
Notes on marking. - The marking serves as a guide when screwing the extensions together:
The mark on the first extension should be aligned approximately in the middle of the base holder
The marks on the other extensions should be approximately on top of each other
Direct screwing assembly procedure:
- Preparation: Pre-assemble individual parts horizontally
- The marking serves as a guide when screwing the extensions together: The mark on the first extension should be aligned approximately in the middle of the base holder
The marks on the other extensions should be approximately on top of each other - Fastening: If necessary, have a second person position and secure the pre-assembled bracket. Carefully screw the base holder in place, ensuring that the cable is not trapped
- Check: Check whether the cable is lying freely and has been led out to the desired opening without being pinched
