Mammotion Luba 1 + 2 & Yuka Robotic lawn mower Performance Smart Antenna Kit
inkl. MwSt.
GRATIS Versand ab Mindestbestellwert
In stock
Beschreibung
Kompatibilität
Technische Daten
Lieferumfang
- 1x base bracket
- 1x counter plate
- 1x extension 🔗
- 1x antenna protector 🔗
Note: Product color as selected. All other items shown are for illustration purposes only and are not included in the scope of delivery.
Montage
Installation recommendation – Performance Smart antenna holder
Our installation recommendations serve as non-binding guidance.
Some recommendations are examples only – the color and shape of the parts may vary. The basic instructions remain valid nonetheless.
If they differ, the OEM manufacturer specifications take precedence.
Required tools, aids and protective equipment:
Depending on the selected installation variant and the mounting materials used
Installation variants & required materials
Clamping variant using a counter plate:
e.g. for installation on a 6/5/6 double wire mesh fence
- 4x M4x18 screws
Direct screwing into hard ground:
e.g.for mounting on brickwork
- 4x 4.5x40 mm universal screws (round head / pan head / button head)
- 4x 6x30 mm wall plugs
Direct fastening in soft surfaces:
e.g. for mounting on a wooden facade or garden shed
- 4x 4.5x30 mm wood screws / universal screws
Assembly process for clamping version:
- Positioning: Position the base bracket with counter plate for clamping. Note the logo side (due to the direction of the threaded sleeves)
- Fixing: Clamp the counter plate to the base bracket with screws using moderate torque (approx. 1 Nm)
- Extension: Attach any number of extensions and screw them on lightly
Notes on marking. - The mark serves as a guide when screwing together the extensions:
The mark on the first extension should be aligned approximately in the center with the base holder
The marks on the other extensions should be approximately aligned with each other

Assembly process for direct screwing:
- Preparation: Pre-assemble individual parts in a horizontal position
- The mark serves as a guide when screwing together the extensions: The mark on the first extension should be aligned approximately in the center with the base holder
The marks on the other extensions should be approximately aligned with each other - Attachment: If necessary, position and secure the pre-assembled bracket with the help of a second person Carefully screw on the base holder, making sure that the cable is not pinched
- Check: Verify that the cable is lying freely and has been routed out through the desired opening without being pinched

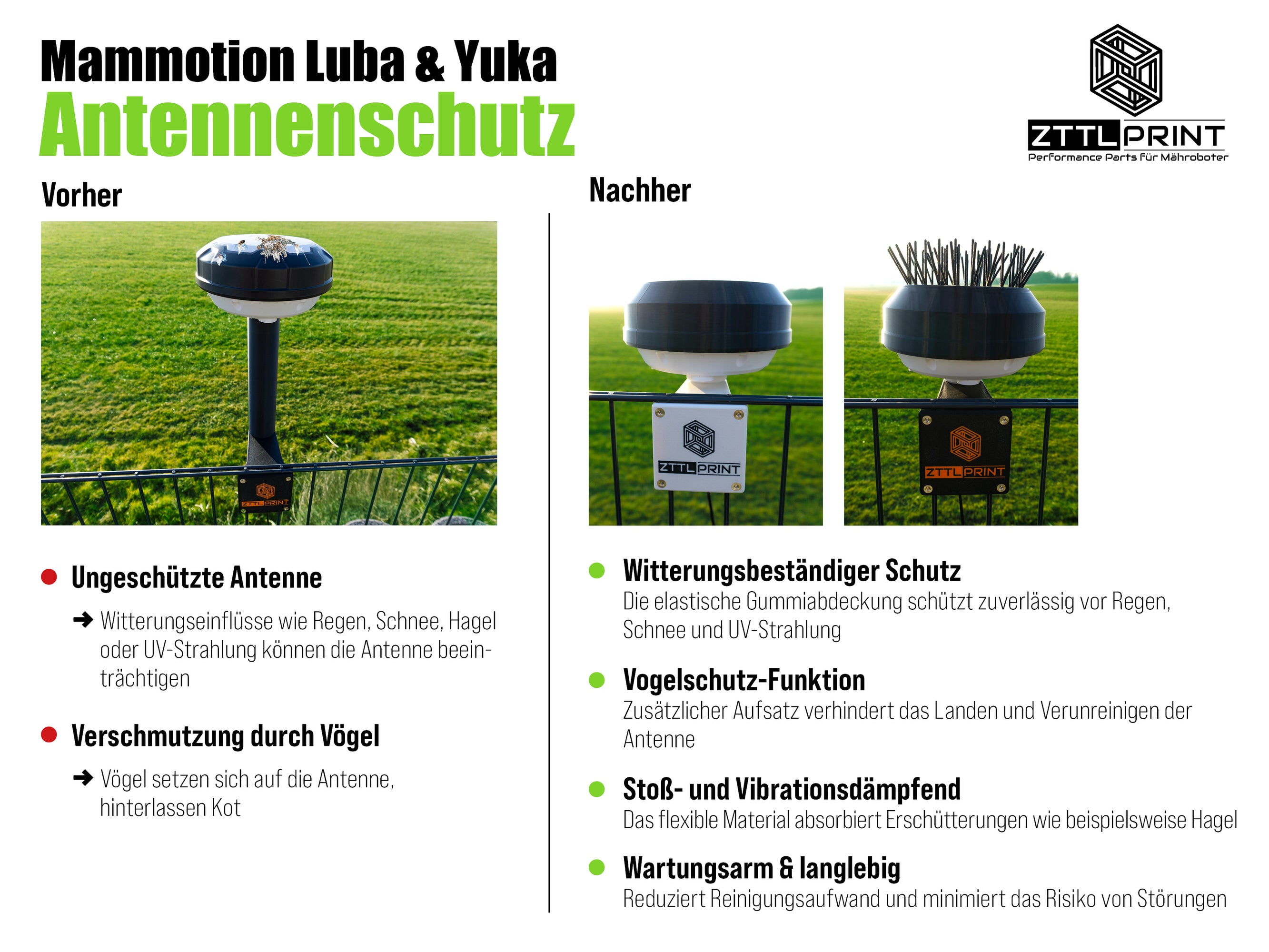

Mounting recommendation – antenna protection
Our installation recommendations are provided as non-binding guidance. If they differ, the manufacturer’s specifications take precedence.
Required tools, aids and protective equipment:
- none
Assembly process:
- Positioning: Place the protective cap on one side/at an angle
- Attachment: Press the protective cap all the way around with both hands staggered
- Fixing: Keep pressing until the protective cap has completely passed over the collar and lies flat on top
- Check: Verification of correct positioning

Hinweise & Gewährleistung
Das sagen unsere Kunden
Rezensionen von echten Rasenprofis
FAQ - häufig gestellte Fragen
- Führt der 3D-Druck zu einer unregelmäßigen Oberfläche?
Die Qualität und Optik der Oberflächenstruktur ist ein wesentlicher Bestandteil unserer Produktgestaltung.
Schichthöhe:
Unsere Schichthöhen sind optimal gewählt, um eine perfekte Balance zwischen optischer Qualität und mechanischer Festigkeit zu gewährleisten.
Hochauflösende Drucktechnologien:
Dank fortschrittlicher Druckverfahren entstehen präzise Details und eine gleichmäßige Oberflächenstruktur.
Qualitätsgarantie:
Unsere zoomfähigen Produktbilder ermöglichen dir eine detaillierte Ansicht der Druckoptik und verdeutlichen die hochwertige Verarbeitung.
- Hält das Material der Belastung stand?
Unsere Produkte wurden sorgfältig entwickelt, um auch unter erhöhter Belastung langlebig und sicher zu bleiben.
Hochfestes Material:
Wir verwenden UV- und witterungsbeständige thermoplastische Kunststoffe, die besonders robust und langlebig sind.
Festigkeitsoptimiertes Design:
Die Konstruktion ist speziell darauf ausgelegt, mechanischen Belastungen standzuhalten und eine zuverlässige Leistung zu gewährleisten.
Umfangreiche Tests:
Im Gegensatz zu vielen anderen Herstellern durchlaufen unsere Messerteller Praxislangzeiterprobungen, eine Fliehkraftprüfung zur Festigkeitsbestimmung sowie eine Unwuchtprüfung – während die Systeme anderer oft ungetestet bleiben.
